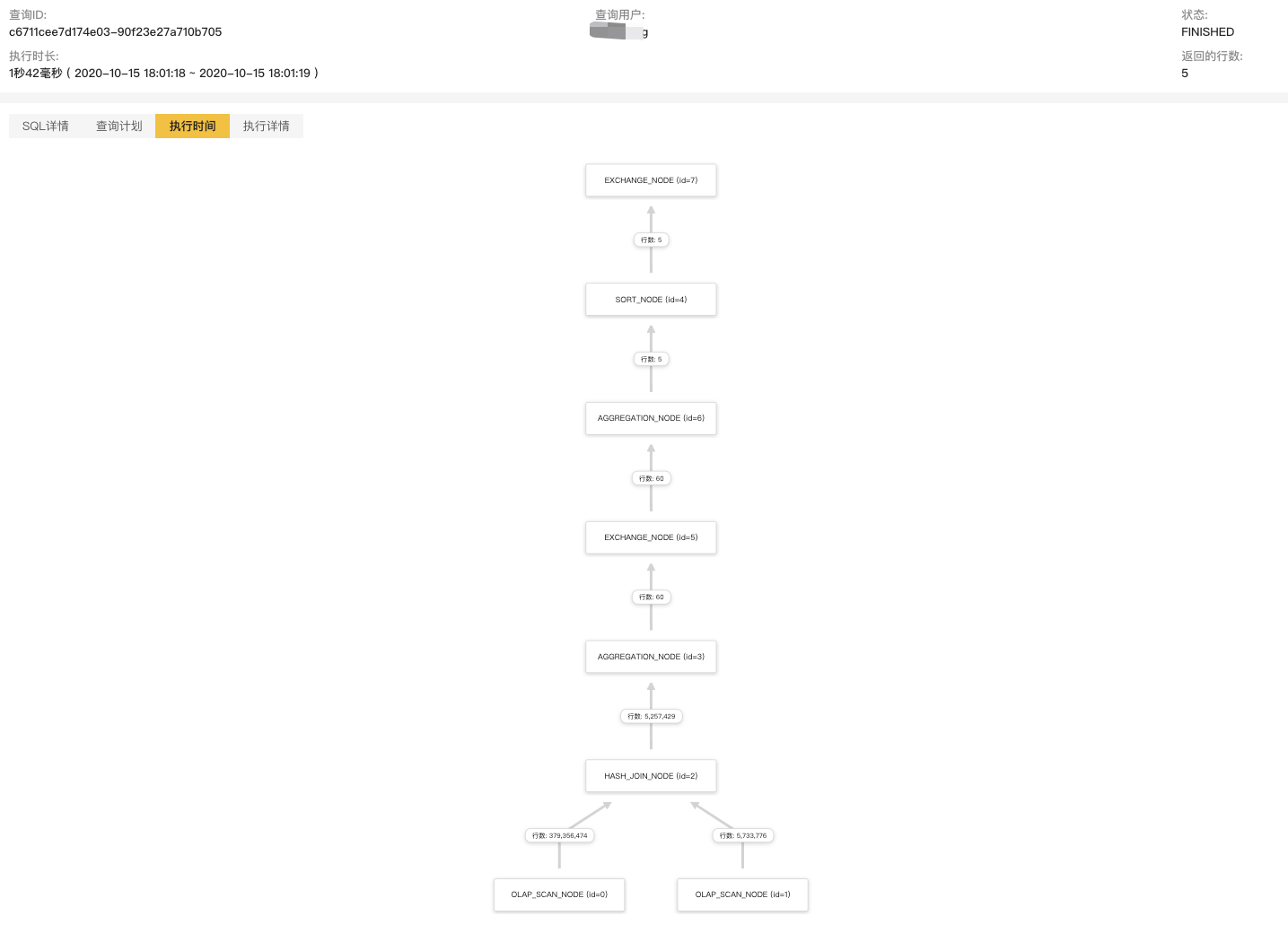

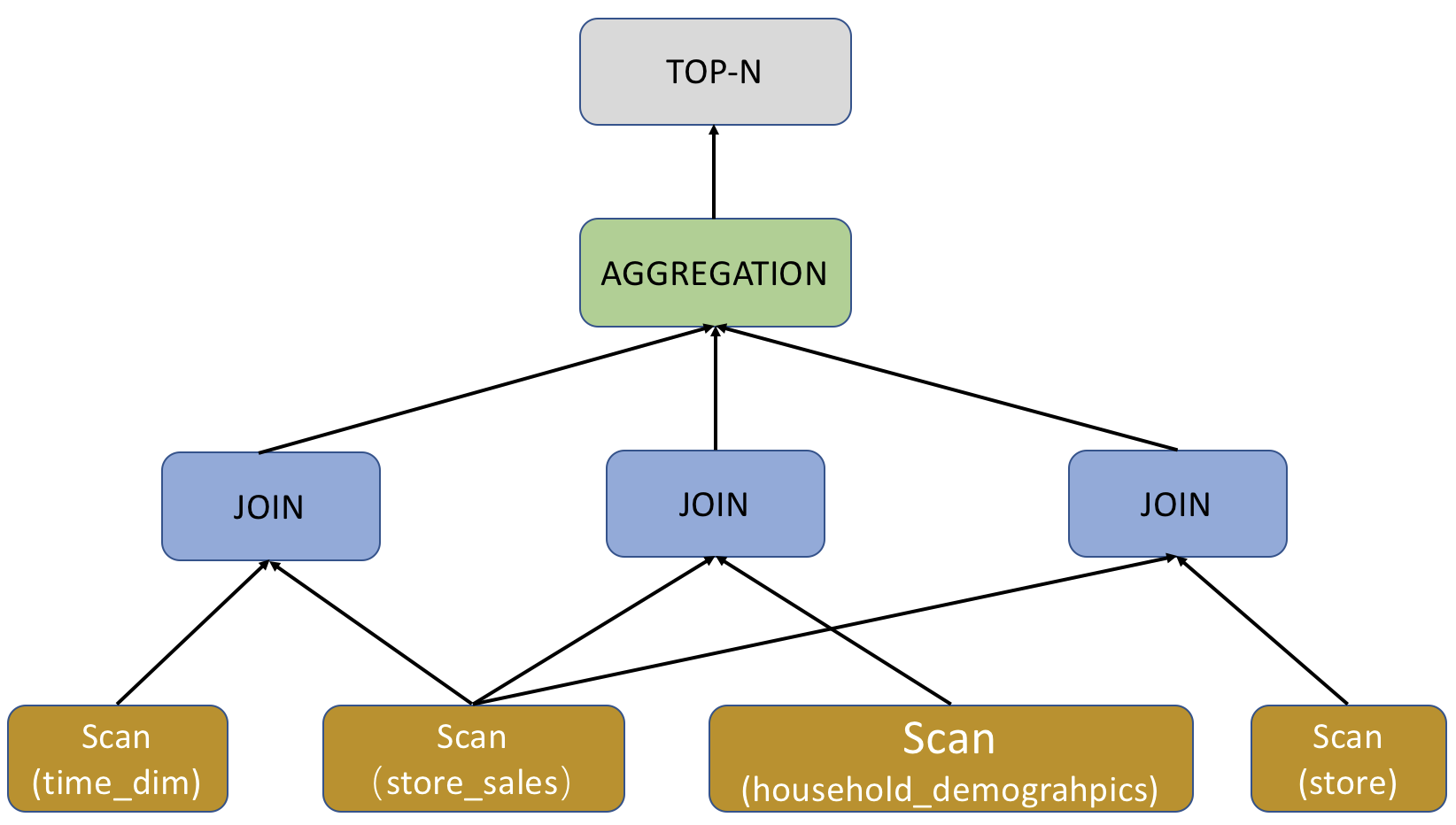

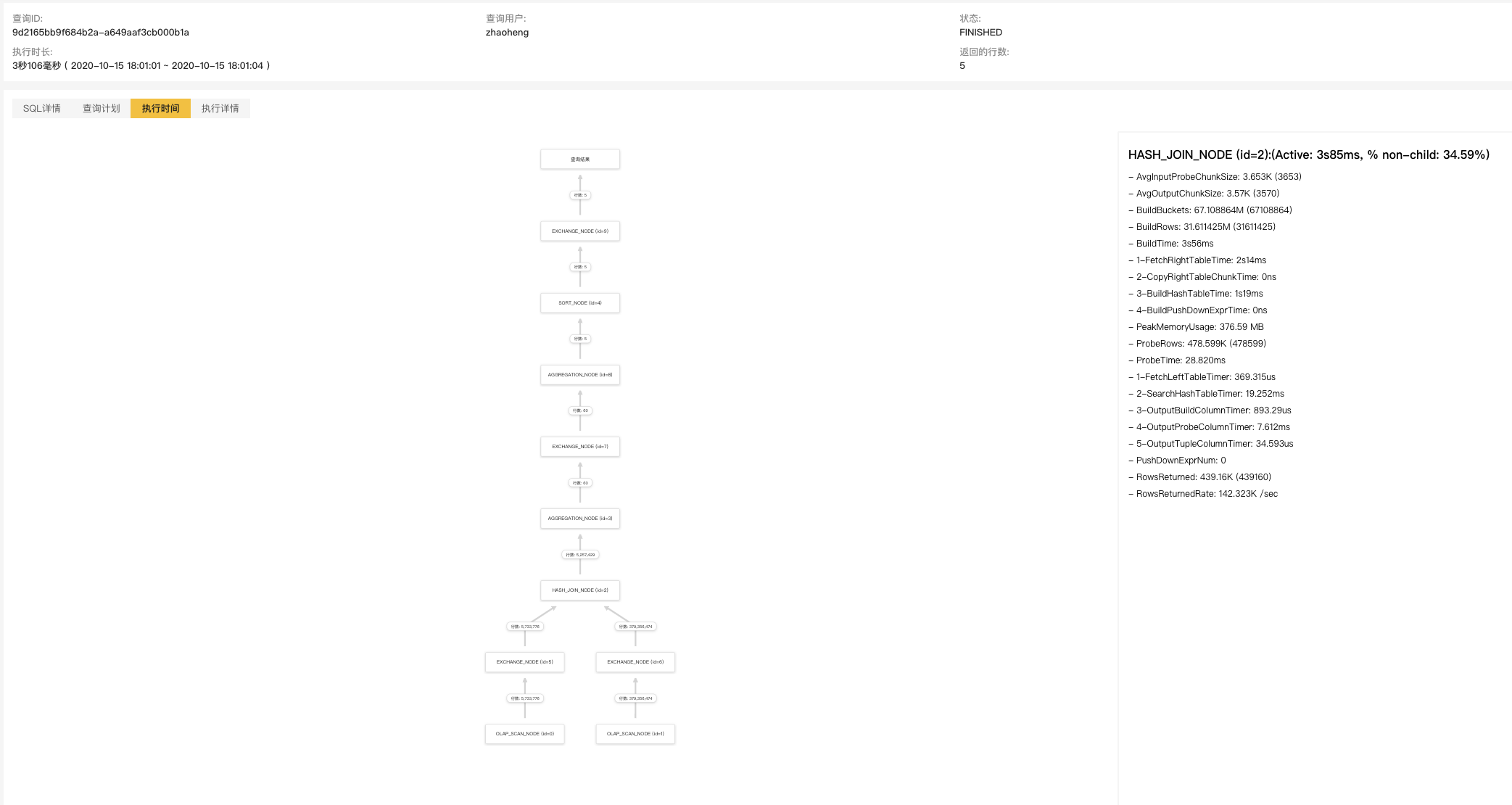

[TOC] 性能优化是DorisDB集群管理员经常遇到的问题,慢查询不但影响用户体验,也会因为个别慢查询影响整个集群的服务能力,所以定期针对慢查询进行分析并优化是一项非常重要的工作。 对于一个查询,我们可以在fe/log/fe.audit.log 中看到所有查询和慢查询信息,每个查询对应一个QueryID,我们可以在页面或者日志中查找到查询对应的 QueryPlan和Profile,QueryPlan是FE通过解析SQL生成的执行计划,而Profile是BE执行后的结果,包含了每一个步骤的耗时和数据处理量等数据,可以通过DorisManager的图形界面看到可视化的Profile执行树。 ### 8.8.1 Plan分析 SQL语句在DorisDB中的生命周期可以分为查询解析(Query Parsing)、规划(Query Plan)、执行(Query Execution)三个阶段。对于DorisDB而言,查询解析一般不会成为瓶颈,因为分析型需求的QPS普遍不高。 决定DorisDB中查询性能的关键就在于查询规划(Query Plan)和查询执行(Query Execution),二者的关系可以用一句户描述:Query Plan负责组织算子(Join/Order/Aggregation)之间的关系,Query Exectuion负责执行具体算子。 Query Plan可以从宏观的角度提供给DBA一个视角,获取Query执行的相关信息。一个好的Query Plan很大程度上决定了查询的性能,所以DBA经常需要去查看Query Plan,确定Query Plan是否生成得当。本章以TPCDS的query96为例,展示如何查看DorisDB的Query Plan。 ~~~ -- query96.sql select count(*) from store_sales ,household_demographics ,time_dim , store where ss_sold_time_sk = time_dim.t_time_sk and ss_hdemo_sk = household_demographics.hd_demo_sk and ss_store_sk = s_store_sk and time_dim.t_hour = 8 and time_dim.t_minute >= 30 and household_demographics.hd_dep_count = 5 and store.s_store_name = 'ese' order by count(*) limit 100; ~~~ Query Plan可以分为逻辑执行计划(Logical Query Plan),和物理执行计划(Physical Query Plan),本章节所讲述的Query Plan默认指代的都是逻辑执行计划。DorisDB中运行EXPLAIN + SQL就可以得到SQL对应的Query Plan,TPCDS query96.sql对应的Query Plan展示如下。 ~~~ +------------------------------------------------------------------------------+ | Explain String | +------------------------------------------------------------------------------+ | PLAN FRAGMENT 0 | | OUTPUT EXPRS:<slot 11> | | PARTITION: UNPARTITIONED | | RESULT SINK | | 12:MERGING-EXCHANGE | | limit: 100 | | tuple ids: 5 | | | | PLAN FRAGMENT 1 | | OUTPUT EXPRS: | | PARTITION: RANDOM | | STREAM DATA SINK | | EXCHANGE ID: 12 | | UNPARTITIONED | | | | 8:TOP-N | | | order by: <slot 11> ASC | | | offset: 0 | | | limit: 100 | | | tuple ids: 5 | | | | | 7:AGGREGATE (update finalize) | | | output: count(*) | | | group by: | | | tuple ids: 4 | | | | | 6:HASH JOIN | | | join op: INNER JOIN (BROADCAST) | | | hash predicates: | | | colocate: false, reason: left hash join node can not do colocate | | | equal join conjunct: `ss_store_sk` = `s_store_sk` | | | tuple ids: 0 2 1 3 | | | | | |----11:EXCHANGE | | | tuple ids: 3 | | | | | 4:HASH JOIN | | | join op: INNER JOIN (BROADCAST) | | | hash predicates: | | | colocate: false, reason: left hash join node can not do colocate | | | equal join conjunct: `ss_hdemo_sk`=`household_demographics`.`hd_demo_sk`| | | tuple ids: 0 2 1 | | | | | |----10:EXCHANGE | | | tuple ids: 1 | | | | | 2:HASH JOIN | | | join op: INNER JOIN (BROADCAST) | | | hash predicates: | | | colocate: false, reason: table not in same group | | | equal join conjunct: `ss_sold_time_sk` = `time_dim`.`t_time_sk` | | | tuple ids: 0 2 | | | | | |----9:EXCHANGE | | | tuple ids: 2 | | | | | 0:OlapScanNode | | TABLE: store_sales | | PREAGGREGATION: OFF. Reason: `ss_sold_time_sk` is value column | | partitions=1/1 | | rollup: store_sales | | tabletRatio=0/0 | | tabletList= | | cardinality=-1 | | avgRowSize=0.0 | | numNodes=0 | | tuple ids: 0 | | | | PLAN FRAGMENT 2 | | OUTPUT EXPRS: | | PARTITION: RANDOM | | | | STREAM DATA SINK | | EXCHANGE ID: 11 | | UNPARTITIONED | | | | 5:OlapScanNode | | TABLE: store | | PREAGGREGATION: OFF. Reason: null | | PREDICATES: `store`.`s_store_name` = 'ese' | | partitions=1/1 | | rollup: store | | tabletRatio=0/0 | | tabletList= | | cardinality=-1 | | avgRowSize=0.0 | | numNodes=0 | | tuple ids: 3 | | | | PLAN FRAGMENT 3 | | OUTPUT EXPRS: | | PARTITION: RANDOM | | STREAM DATA SINK | | EXCHANGE ID: 10 | | UNPARTITIONED | | | | 3:OlapScanNode | | TABLE: household_demographics | | PREAGGREGATION: OFF. Reason: null | | PREDICATES: `household_demographics`.`hd_dep_count` = 5 | | partitions=1/1 | | rollup: household_demographics | | tabletRatio=0/0 | | tabletList= | | cardinality=-1 | | avgRowSize=0.0 | | numNodes=0 | | tuple ids: 1 | | | | PLAN FRAGMENT 4 | | OUTPUT EXPRS: | | PARTITION: RANDOM | | STREAM DATA SINK | | EXCHANGE ID: 09 | | UNPARTITIONED | | | | 1:OlapScanNode | | TABLE: time_dim | | PREAGGREGATION: OFF. Reason: null | | PREDICATES: `time_dim`.`t_hour` = 8, `time_dim`.`t_minute` >= 30 | | partitions=1/1 | | rollup: time_dim | | tabletRatio=0/0 | | tabletList= | | cardinality=-1 | | avgRowSize=0.0 | | numNodes=0 | | tuple ids: 2 | +------------------------------------------------------------------------------+ 128 rows in set (0.02 sec) ~~~ Query96展示的查询规划中,涉及多个DorisDB概念,理解此类概念对于理解查询规划至关重要,可以通过一个表格进行阐述。 |名称|解释| |---|---| |avgRowSize|扫描数据行的平均大小| |cardinality|扫描表的数据总行数| |colocate|表是否采用了Colocate形式| |numNodes|扫描涉及的节点数| |rollup|物化视图| |preaggregation|预聚合| |predicates|谓词,也就是查询过滤条件| |partitions|分区| |table|表| Query96的Query Plan分为五个Plan Fragment,编号从0~4。阅读Query Plan可以采用自底向上的方式进行,逐个进行阅读。 上图中最底部的Plan Fragment为Fragment 4,它负责扫描time\_dim表,并提前执行相关查询条件time\_dim.t\_hour = 8 and time\_dim.t\_minute >= 30,也就是大家所熟知的谓词下推。对于聚合表(Aggregate Key),DorisDB会根据不同查询选择是否开启PREAGGREGATION,上图中time\_dim的预聚合为关闭状态,关闭状态之下会读取time\_dim的全部维度列,当表中维度列多的时候,这个可能会成为影响性能的一个关键因素。如果time\_dim表有选择Range Partition进行数据划分,Query Plan中的partitions会表征查询命中几个分区,无关分区被自动过滤会有效减少扫描数据量。如果有物化视图,DorisDB会根据查询去自动选择物化视图,如果没有物化视图,那么查询自动命中base table,也就是上图中展示的rollup: time\_dim。其他字段可以暂时不用关注。 当time\_dim数据扫描完成之后,Fragment 4的执行过程也就随之结束,此时它将扫描得到的数据传递给你其他Fragment,上图中的EXCHANGE ID : 09表征了数据传递给了标号为9的接收节点。 对于Query96的Query Plan而言,Fragment 2, 3, 4功能类似,只是负责扫描的表不同。具体到查询中的Order/Aggregation/Join算子,都在Fragment 1中进行,下面着重介绍Fragment 1。 Fragment 1集成了三个Join算子的执行,采用默认的BROADCAST方式进行执行,也就是小表向大表广播的方式进行,如果两个Join的表都是大表,建议采用SHUFFLE的方式进行。目前DorisDB只支持HASH JOIN,也就是采用哈希算法进行Join。图中有一个colocate字段,这个用来表述两张Join表采用同样的分区/分桶方式,如此执行Join的过程中可以直接在本地执行,不用进行数据的移动。Join执行完成之后,就是执行上成的Aggregation, Order by和TOP-N的算子,Query96的上述上个算子都比较浅显易懂,十分容易弄懂。 至此,关于Query96的Query Plan的解释就告一段落,去掉具体的表达式,只保留算子的话,Query Plan可以以一个更加宏观的角度展示,就是下图。 ![](https://img.kancloud.cn/99/e3/99e3900e223b9a75ea51c8324ba9acdd_1644x932.png) ### 8.8.2 Profile分析 在理解了Plan的作用以后,我们来分析以下BE的执行结果Profile,通过在DorisManager中执行查询,点击查询历史,就可看在“执行详情”tab中看到Profile的详细文本信息,在“执行时间”tab中能看到图形化的展示,这里我们采用TPCH的Q4查询来作为例子 ~~~ -- TPCH Q4 select o_orderpriority, count(*) as order_count from orders where o_orderdate >= date '1993-07-01' and o_orderdate < date '1993-07-01' + interval '3' month and exists ( select * from lineitem where l_orderkey = o_orderkey and l_commitdate < l_receiptdate ) group by o_orderpriority order by o_orderpriority; ~~~ 可以看到这是一个包含了相关子查询,group by,ordery by 和count 的查询,其中order是订单表,lineitem是货品明细表,这两张都是比较大的事实表,这个查询的含义是按照订单的优先级分组,统计每个分组的订单数量,同时有两个过滤条件: * 订单创建时间是1993年7月 到1993年10月之间 * 这个订单对应的产品的提交日期(l\_commitdate)小于收货日期(l\_receiptadate) 执行Query后我们能看到 : ![](https://img.kancloud.cn/6c/32/6c322653b95f819ac69a163faeadec0b_2085x1110.png) 左上角我们能看到整个查询执行了3.106s, 点击每个节点可以看到每一部分的执行信息,Active 表示这个节点(包含其所有子节点)的时间,整体结构上可以看到最下面的子节点是两个scan node,他们分别scan了 573万和3793万数据,然后进行了一次shuffle join,完成后输出525万条数据,然后经过两层聚合,最后通过一个Sort Node后输出结果,其中Exchange node是数据交换节点,在这个case中是进行了两次Shuffle。 一般分析Profile的核心就是找到执行时间最长的性能瓶颈所在的节点,比如我们可以从上往下依次查看,可以看到这个Hash Join Node占了主要时间: ~~~ HASH_JOIN_NODE (id=2):(Active: 3s85ms, % non-child: 34.59%) - AvgInputProbeChunkSize: 3.653K (3653) - AvgOutputChunkSize: 3.57K (3570) - BuildBuckets: 67.108864M (67108864) - BuildRows: 31.611425M (31611425) - BuildTime: 3s56ms - 1-FetchRightTableTime: 2s14ms - 2-CopyRightTableChunkTime: 0ns - 3-BuildHashTableTime: 1s19ms - 4-BuildPushDownExprTime: 0ns - PeakMemoryUsage: 376.59 MB - ProbeRows: 478.599K (478599) - ProbeTime: 28.820ms - 1-FetchLeftTableTimer: 369.315us - 2-SearchHashTableTimer: 19.252ms - 3-OutputBuildColumnTimer: 893.29us - 4-OutputProbeColumnTimer: 7.612ms - 5-OutputTupleColumnTimer: 34.593us - PushDownExprNum: 0 - RowsReturned: 439.16K (439160) - RowsReturnedRate: 142.323K /sec ~~~ 从这里信息可以看到 hash join的执行主要分成两部分时间,也就是BuildTime和ProbeTime,BuildTime是扫描右表并构建hash表的过程,ProbeTime是获取左表并搜索hashtable进行匹配并输出的过程。可以明显的看出这个节点的时间大部分花在了BuildTime的 FetchRightTableTime和BuildHashTableTime,对比刚才的数据Scan行数数据,我们意识到这个查询的左表和右表的顺序其实不理想,应该把左表设置为大表,右表Build hash table会效果更好,而且对于这两个表都是事实表,数据都比较多,我们也可以考虑采用 colocate Join来避免 最下面的数据shuffle,同时减少Join的数据量,于是我们参考[“Colocate join”](6.4ColocationJoin.md)建立了colocation关系后,并且改写SQL如下: ~~~ with t1 as ( select l_orderkey from lineitem where l_commitdate < l_receiptdate ) select o_orderpriority, count(*)as order_count from t1 right semi join orders_co on l_orderkey = o_orderkey where o_orderdate >= date '1993-07-01' and o_orderdate < date '1993-07-01' + interval '3' month group by o_orderpriority order by o_orderpriority; ~~~ 执行结果: ![](https://img.kancloud.cn/5a/bc/5abc05daafdad0f44fc53e8e67046729_1435x1060.png) 新的SQL执行从3.106s降低到了1.042s,可以明显看到两张大表没有了Exchange节点,直接通过Colocated Join进行,而且左右表顺序调换了以后整体性能有了大幅提升,新的Join Node信息如下: ~~~ HASH_JOIN_NODE (id=2):(Active: 996.337ms, % non-child: 52.05%) - AvgInputProbeChunkSize: 2.588K (2588) - AvgOutputChunkSize: 35 - BuildBuckets: 1.048576M (1048576) - BuildRows: 478.171K (478171) - BuildTime: 187.794ms - 1-FetchRightTableTime: 175.810ms - 2-CopyRightTableChunkTime: 5.942ms - 3-BuildHashTableTime: 5.811ms - 4-BuildPushDownExprTime: 0ns - PeakMemoryUsage: 22.38 MB - ProbeRows: 31.609786M (31609786) - ProbeTime: 807.406ms - 1-FetchLeftTableTimer: 282.257ms - 2-SearchHashTableTimer: 457.235ms - 3-OutputBuildColumnTimer: 26.135ms - 4-OutputProbeColumnTimer: 16.138ms - 5-OutputTupleColumnTimer: 1.127ms - PushDownExprNum: 0 - RowsReturned: 438.502K (438502) - RowsReturnedRate: 440.114K /sec ~~~
